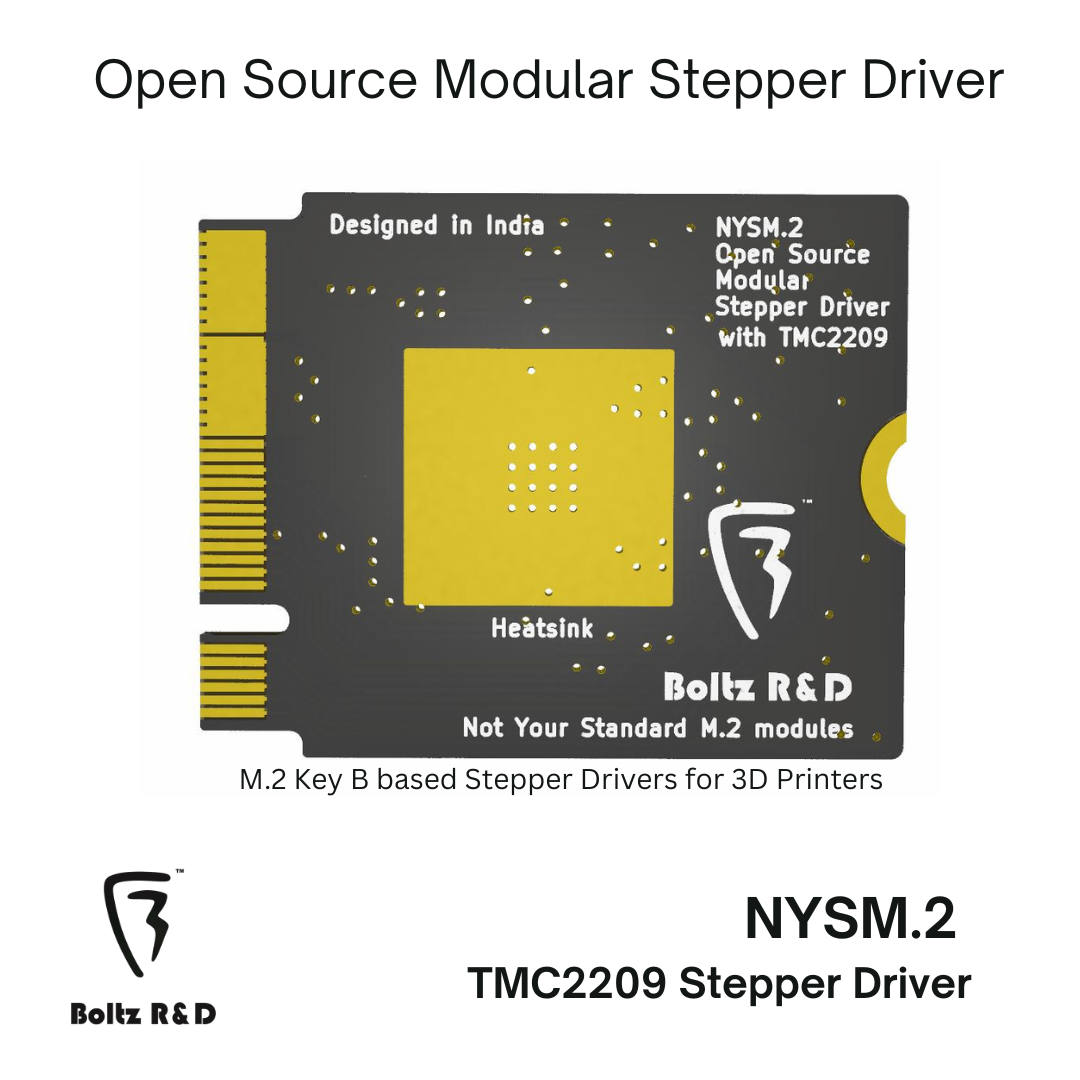

NYSM.2 TMC2209 Stepper Driver

NYSM.2 TMC2209 Stepper Driver

Regular price $5.00 USD
Regular price $6.00 USD Sale price $5.00 USD
Sale Sold out

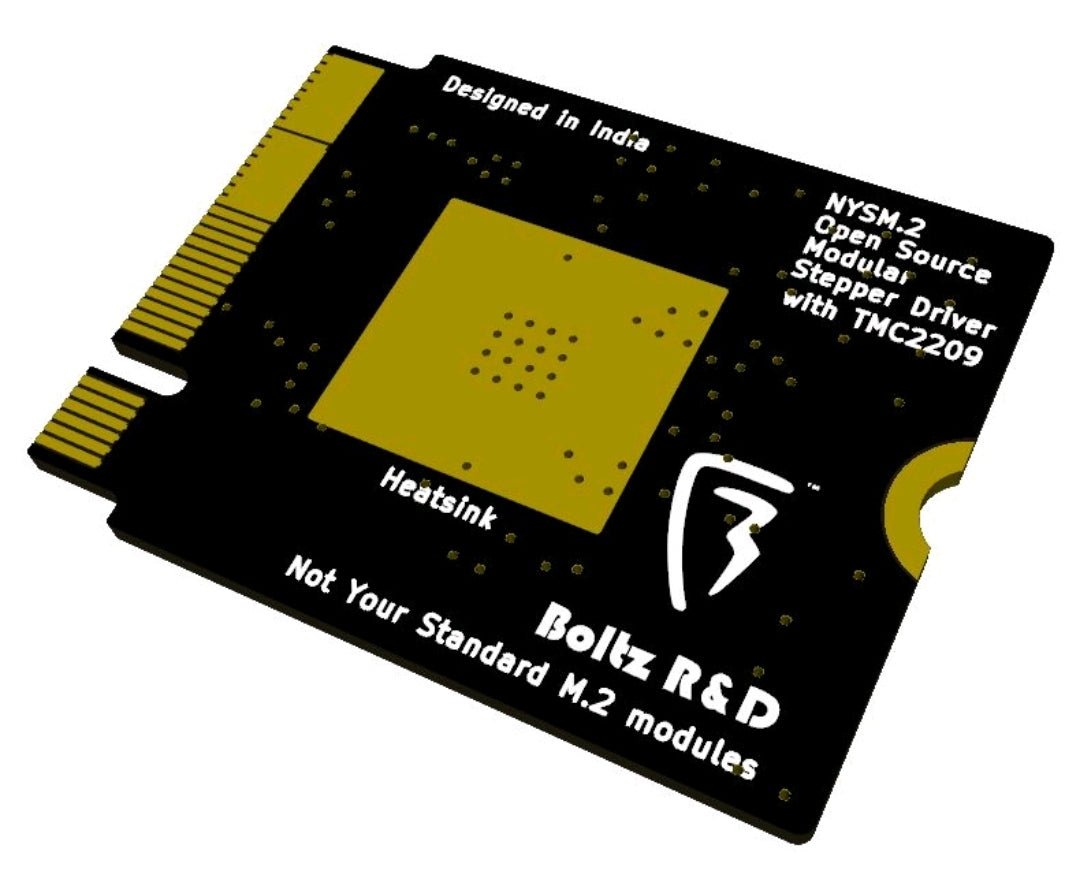

NYSM.2 TMC2209 Stepper Driver is a modular stepper driver with a M.2 Key B interface to interface stepper drivers to your 3D Printers.

Instead of Limiting Proprietary connectors that locks you into a closed source ecosystem, NYSM.2 Interface allows all manufacturers, Makers, Hobbyists, and Industries to utilize the widely available M.2 key B interface over NYSM.2 Standard Pinout to add modularity to board and machine designs, apart from the already available advantages like Poka-Yoke designs, NYSM.2 Offers High Current capabilities, 3 reserved pins, more robust Horizontal and screw tightened mounting, and the ability to utilize both top and bottom layers mounting to add double the number of drivers in the same footprint space.

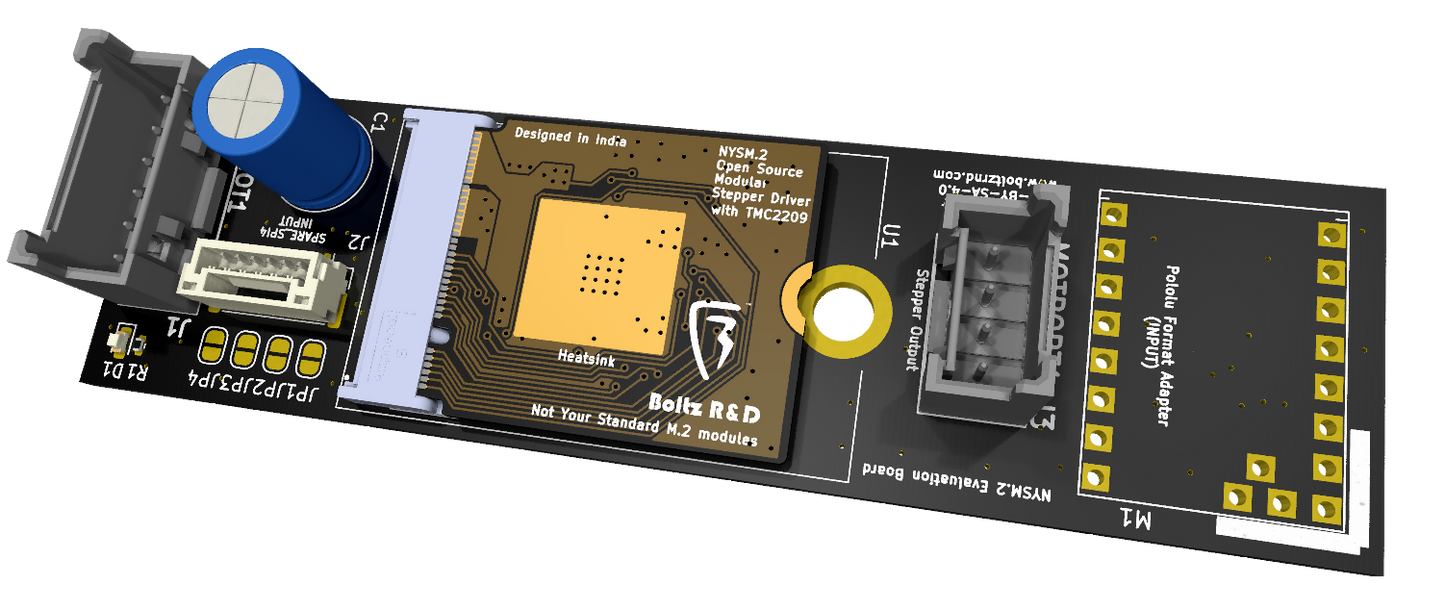

Currently, The board only interfaces with an evaluation board(Sold Separately) that can be used with any 3D Printer mainboard to add NYSM.2 Port instead of the standard Pololu Driver port.

we are offering hardware releases for the boards for manufacturers and designers to test and adopt the interface in all 3D Printer Mainboard designs.

We Plan to release modular versions of SmartPrintCoreH7x and SmartPrintCore Extravaganza with 2 more boards that'll adopt the new standard by Q2 2025.
